AK1080

Overview

The AK1080 series processors are designed for applications such as TWS/OWS Bluetooth earbuds and Bluetooth speakers. Equipped with a Bluetooth module, an audio processor, and a power management unit, the AK1080 series processors deliver low-power consumption with consistent audio performance. Featuring two touch-sensitive keys, the processors support flexible and intuitive user interaction. Additionally, the AK1080 series processors provide a comprehensive set of peripheral interfaces, including I2S, PDM, UART, TWI, and SPI, enabling flexible system integration and supporting diverse audio and data communication needs.

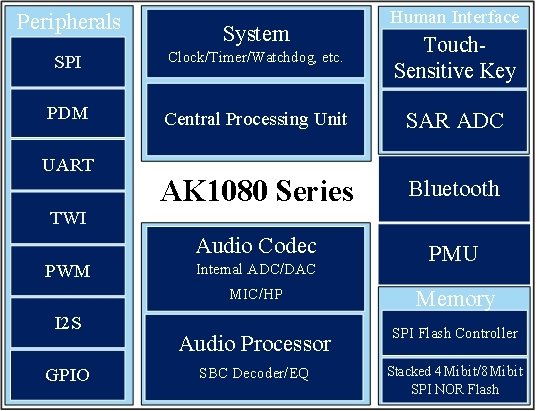

Functional Block Diagram

Specification

CPU

32-bit RISC core
Up to 300MHz working frequency

Storage
```
Stacked 4Mibit/8Mibit SPI NOR Flash
```

Bluetooth

Compatible with Bluetooth specification v6.1
Supports dual mode: BR/EDR and BLE

Working Mode

Active mode
Standby mode
Sleep mode
Deep sleep mode
Power off mode

Audio

Two Sigma-Delta ADCs
One Built-in Sigma-Delta DAC
SBC decoding and EQ

Peripheral Interface

SPI、PWM、UART、TWI、I2S、PDM、Touch-sensitive keys

Package
```
QFN24
QFN32
```

AK1080

PDF

Application scenarios

TWS

OWS

Bluetooth Speaker

超凡国际:More

Development Platform

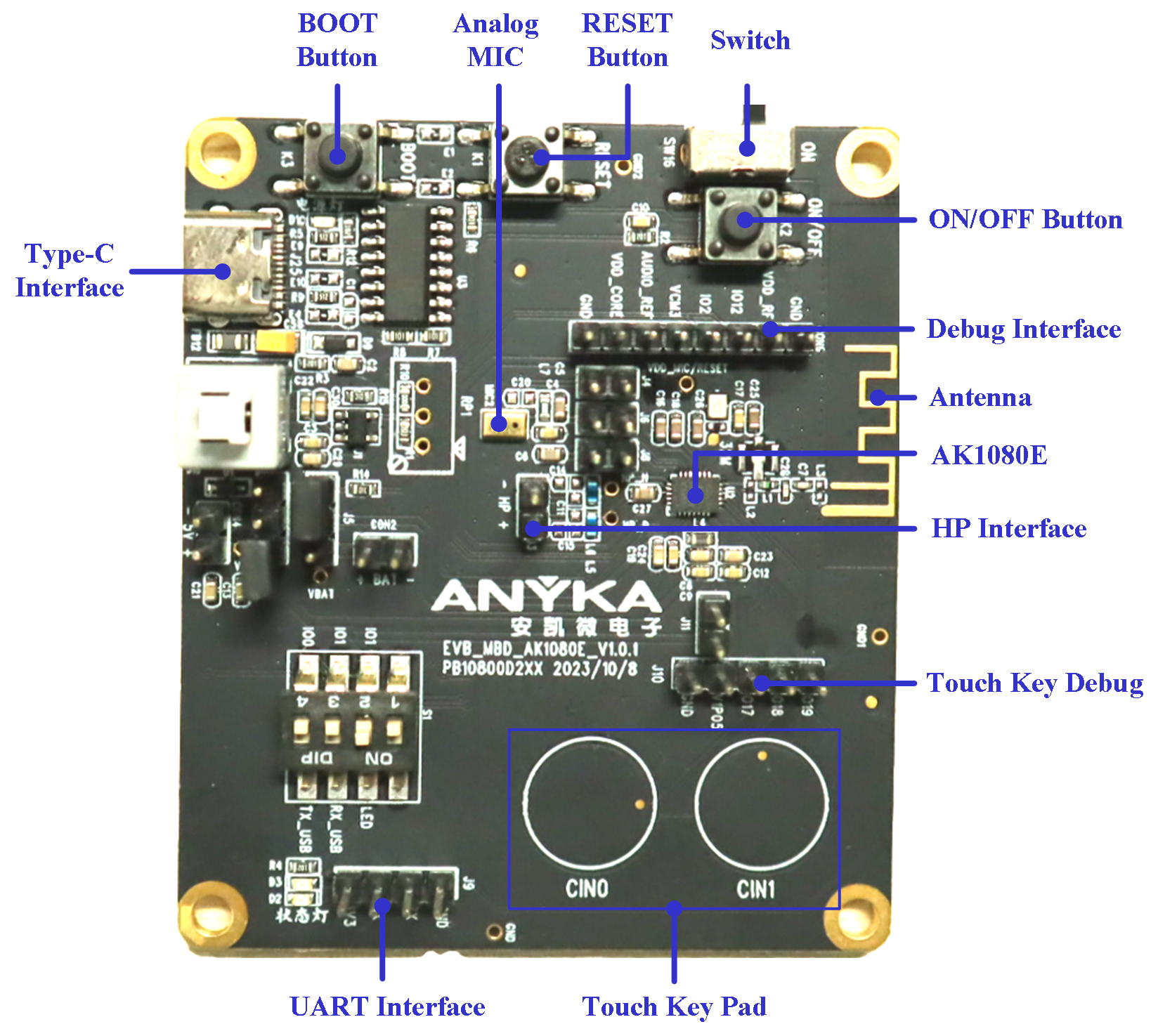

1080 Development Board Set A (TWS Earphone Application)
